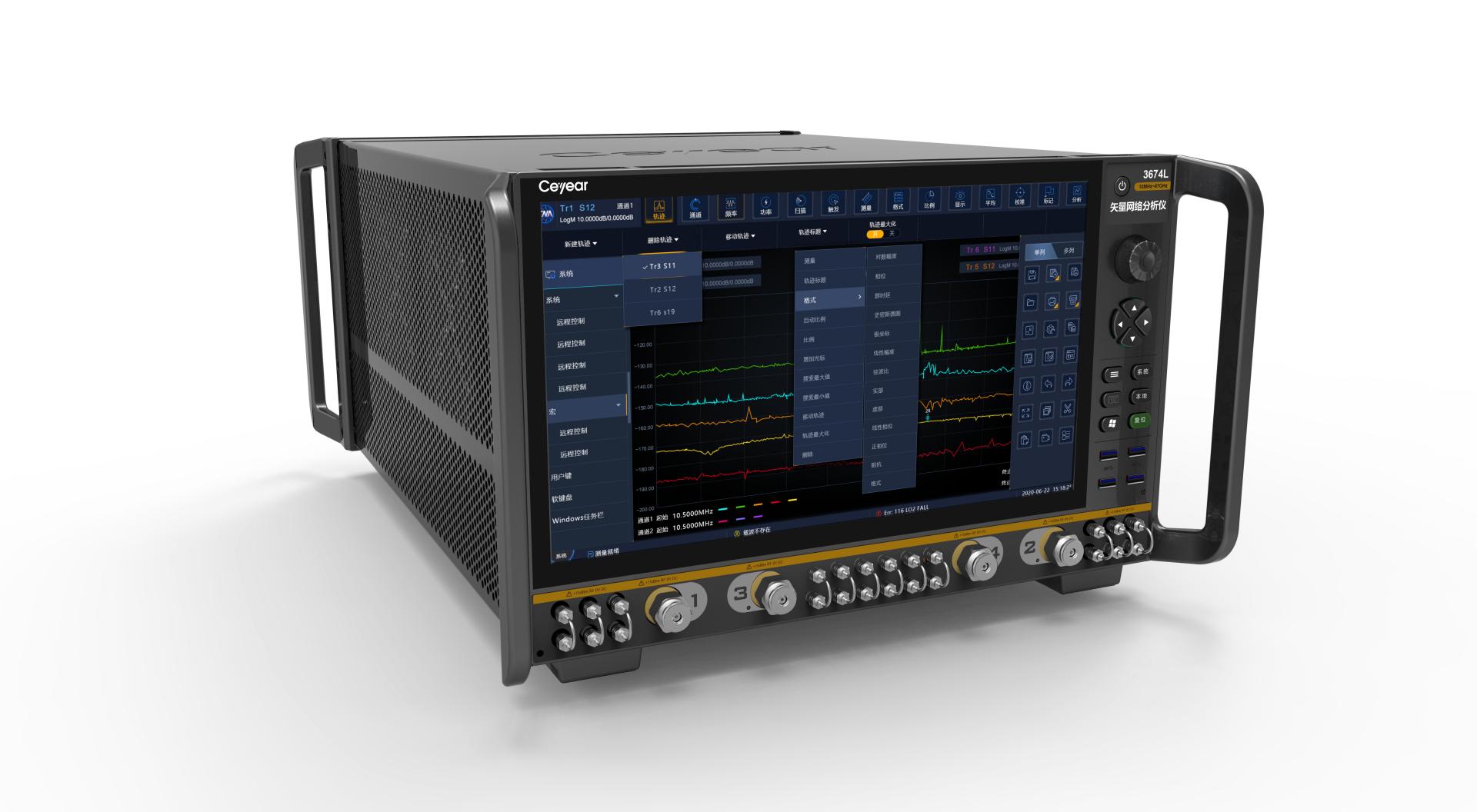

Vector Network Analyzer

This vector network analyzer is a pinnacle of technological innovation, integrated with 21 functions like pulsed S-parameter measurements, frequency converter measurements, gain-compression measurements, noise figure measurements, spectrum measurements, signal integrity measurements, total harmonic distortion measurements, active intermodulation distortion measurements, automatic fixture removal. It equips parameter measurement capacity from 500Hz to 110GHz, and can easily tackle the difficulties from semiconductor chip testing, material testing, antenna testing, high-speed cable testing, microwave component testing, etc. With excellent RF characteristics, flexible hardware configurations, and rich software functions, it can finish multiple testings with only one connection, precisely meeting the needs of users in different sectors.

The cool appearance, matched with starry black and an ultra-large display, makes it more reliable as an industrial product. Unlike the traditional shape using handles and rear feet, it integrates protection and handles into one by adding rounded handles at four corners. Its interior structure adopts a multi-cage multi-backplane design to form a dual-motherboard and three-cage one, which minimizes signal crosstalk for a highly-isolated signal and reduces the impact of electromagnetic compatibility, vibration, and shock. The detachable CPU module is compatible with different configurations and it's no need to disassemble the analyzer, which possesses more flexibility.

The analyzer comes with a 15.6-inch touch display, enabling remote control and multi-touch. Concise buttons and diverse input and output interfaces render more convenient operation and more intuitive testings. Moreover, as the depth of the analyzer adopts a serialized design, all modular function boards support flexible number customization to meet the needs of different instruments, thus realizing the extension of different frequency bands and customization production.
