The Milan Series 116 Lifting and Sliding System Window adopts ultra-narrow frames that are only 4.5cm wide from the front view to enclose all the sashes within the frame, offering a wide field of view to improve users’ visual experience.

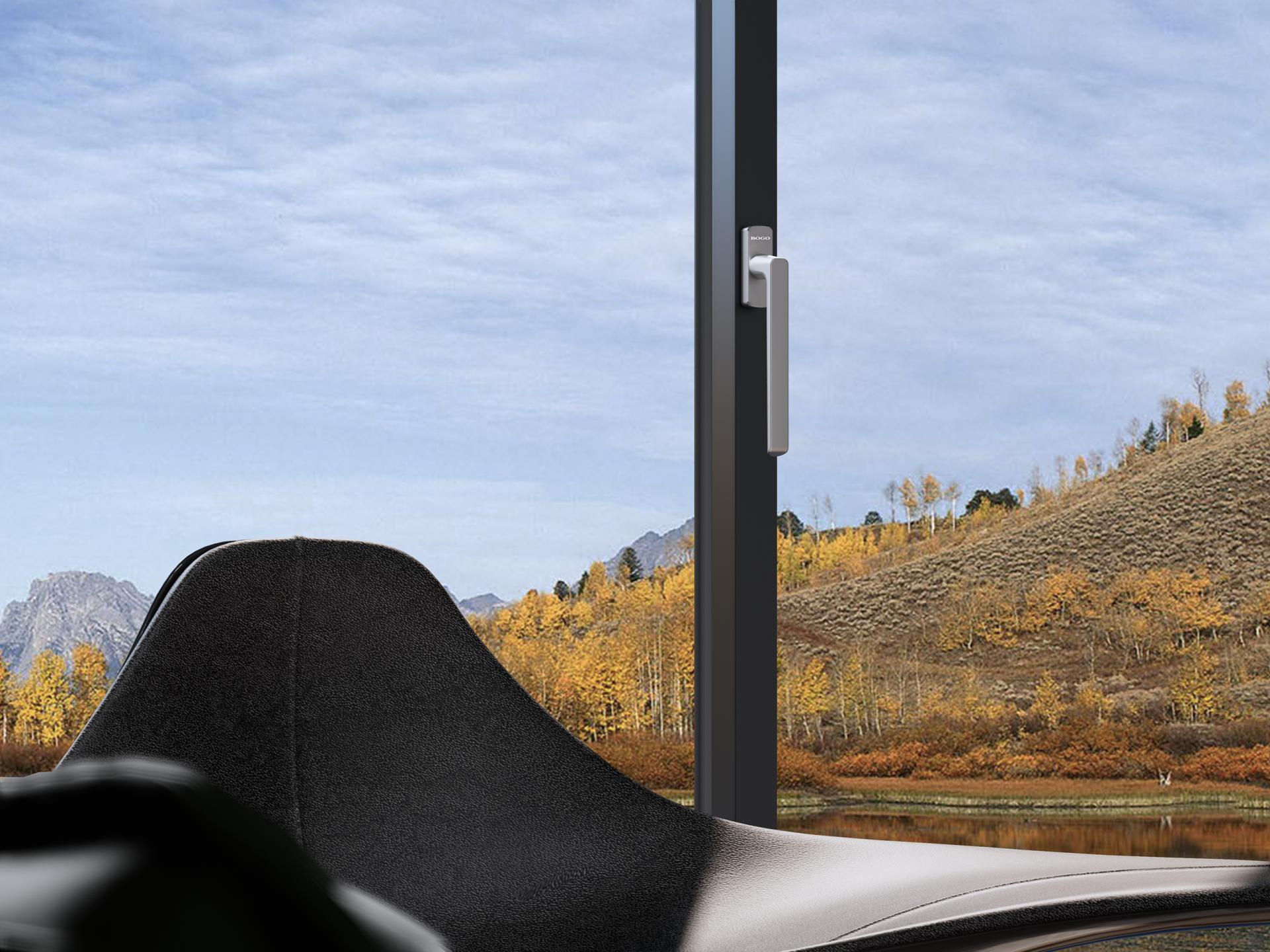

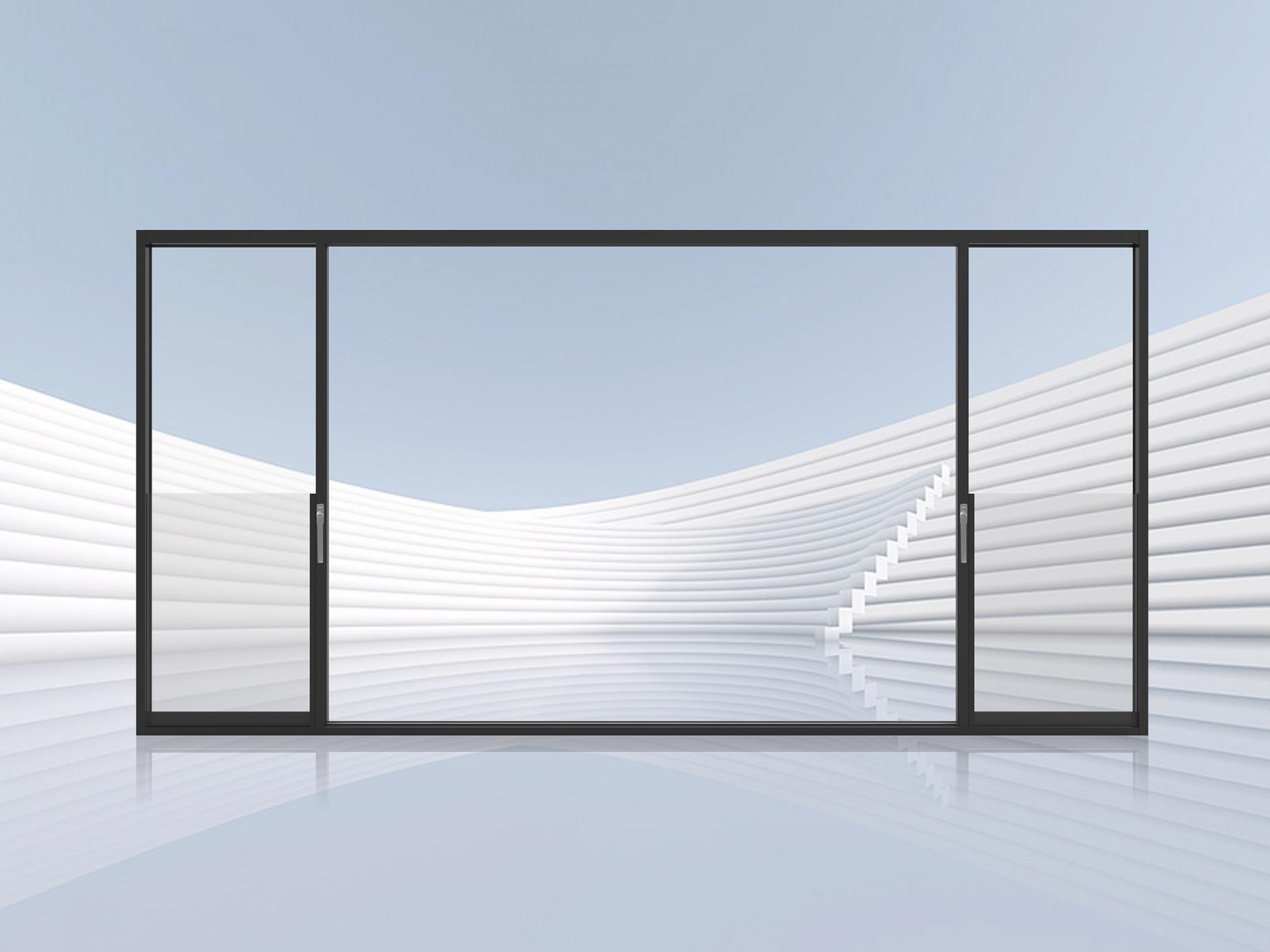

This series has sliding sashes at both the left and right sides, combined with a piece of glass fixed in the middle. With a built-in sliding hardware system, the sliding sashes can stop at any position, thus achieving free ventilation of a large or small air volume. The handle features a child safety lock, allowing users to lift it to lock the window, which helps protect children from potential dangers caused by opening or closing the window.
This series applies a bridge-cut structure and PA66 high-performance insulation strips, coupled with the insulating glass, ensuring excellent heat and sound insulation. The sealing strip installed below the opening sash helps seal the window tightly when the window sash is pressed down while ensuring smooth sash sliding when the sash is lifted. The opening sash is designed with an external 8+8 laminated glass guardrail, guaranteeing user safety and a transparent wide field of view. The externally reinforced middle mullion makes the entire window more stable and diverts rainwater to the outdoors through its below drainage holes.
This series allows window sash customization( number, position, etc.) based on user needs and home decoration styles. It supports adding rolling shutter screens inside the glass guardrail to keep out mosquitoes and insects and ensure ventilation. With upgraded structural sections, this series enables excellent performance in sealing and ventilation, solving the problem of the small air volume of ventilation of regular casement windows.
